Technical Specifications
Electrically Operated Outboard Motor Lift(Stronger with Control System)
Technical Specifications
I. Product Overview
Our company is committed to continuously improving the safety of firefighters and reducing
their physical exertion and operational time during the retrieval, deployment, and retraction of
firefighting equipment. Electrically operated outboard engine lift are designed to make the
process of lifting heavy outboard motors easier and safer，Electrically Operated Outboard Motor
Lift(Stronger with Control System)gives you complete control over raising and lowering the motor using
dedicated buttons on the block and control panel
The automatic handling stand is the first in China to utilize pneumatic cylinders, offering
advantages such as compact size, lightweight design, low cost, high reliability, and ease of
logistics.
II. Technical Parameters
1. Electrically operated boat motor lift Model Number: ZS-J-CF
2.Deployed Dimensions of Outboard Motor Trailer: 950 × 570 × 1050 mm
The trailer handle is retractable and can be flipped 90°, with a quick-release latch.
3.Weight:
Trailer alone: 20 kg
With outboard motor: Approximately 70 kg
4.Construction:
Main body made of aluminum alloy.
Lifting mechanism constructed from steel plates, first galvanized and then powder-coated.
Total weight: 100 kg.
5.Operation:
Can be operated by a single person without lifting.
Deployment time: 10 to 15 seconds.Technical Specifications
6. Load Capacity: Maximum 100 kg.
III. Implementation Details and Illustrations

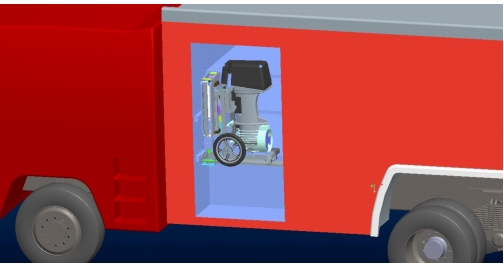

Outboard Motor Trailer Stored in Equipment Compartment state
First, manually rotate the outboard motor trailer by 90 degrees
Technical Specifications
place outboard motor trailer in the ground position state
outboard motor trailer in the detached state
Technical Specifications
