一、 概述 Overview
ZISHU-2000-ATV 型排涝/供水机器人是在电驱两栖式ATV底盘上搭载发动机直驱的大排量排涝/供水泵 组， 针对城市内涝中低洼地带、地下商场、地下车库等积水深、水量大的区域研发的新型排涝/供水机器
人；亦可适用于远程供水系统的滩途取水。
The ZISHU-2000-ATV type waterlogging/water supply robot is a new type of waterlogging/water supply robot that is equipped with a large displacement waterlogging/water supply pump set directly driven by an engine on the chassis of an electric drive amphibious ATV. It is developed for areas with deep and large water accumulation such as low-lying areas, underground shopping malls, and underground garages in urban waterlogging areas; It can also be used for beach water
intake in remote water supply systems.
二、 系统特点 System characteristics
ZISHU-2000-ATV 型两栖式排涝供水机器人具有车型小巧、流量大、扬程高的优点，系统还具有通过性
好、适应性强等特点。
The ZISHU-2000-ATV amphibious drainage and water supply robot has the advantages of compact vehicle size, large flow rate, and high lift. The system also has the characteristics of good
trafficability and strong adaptability.
三、 系统组成 System composition
ZISHU-2000-ATV 型排涝/供水机器人由以下几个部分组成：
The ZISHU-2000-ATV type drainage/water supply robot consists of the following parts:
1. 两栖 ATV 底盘 Amphibious ATV chassis
2. 电动四驱行走系统 Electric four-wheel drive walking system
3. 发动机直驱排涝泵组 Engine direct drive drainage pump set
4. 控制系统 Control system
四、 系统主要技术参数 Main technical parameters of the system
1. ATV 行走机构型式： 轮式四驱
ATV walking mechanism type: wheel four-wheel drive
2. ATV 底盘离地：150mm
ATV chassis ground clearance: 150mm
3. 排涝流量： 2000m3/h
Drainage flow rate: 2000m3/h
4. 排涝扬程： 15m--20m
Drainage head: 15m-20m
5. 颗粒通过直径： 20mm
Particle passing diameter: 20mm
6. 发动机功率：220 HP
Engine power: 220 HP
7. 油箱容积： 120 L
Fuel tank capacity: 120 L
8. 行走速度： 0-6 km/h
Walking speed: 0-6 km/h
9. ATV 重量：1600 kg
ATV weight: 1600 kg
10. ATV 外形尺寸： L2700mm，W2000mm，H1500mm
ATV overall dimensions: L2700mm, W2000mm, H1500mm
11. 排水口径： DN300×2
Drainage diameter: DN300 × two
12. 最大排水/供水距离：1000 米
Maximum drainage/water supply distance: 1000 meters
13. 遥控距离： 0—200 米
Remote control distance: 0-200 meters
五、 系统主要技术参数 Main technical parameters of the system
14. ATV 行走机构型式： 轮式四驱
ATV walking mechanism type: wheel four-wheel drive
15. ATV 底盘离地：150mm
ATV chassis ground clearance: 150mm
16. 排涝流量： 2000m3/h
Drainage flow rate: 2000m3/h
17. 排涝扬程： 15m--20m
Drainage head: 15m-20m
18. 颗粒通过直径： 20mm
Particle passing diameter: 20mm
19. 发动机功率：220 HP
Engine power: 220 HP
20. 油箱容积： 120 L
Fuel tank volume: 120 L
21. 行走速度： 0-6 km/h
Walking speed: 0-6 km/h
22. ATV 重量：1600 kg
ATV weight: 1600 kg
23. ATV 外形尺寸： L2700mm，W2000mm，H1500mm
ATV overall dimensions: L2700mm, W2000mm, H1500mm
24. 排水口径： DN300×2
Drainage diameter: DN300 × two
25. 最大排水/供水距离：1000 米
Maximum drainage/water supply distance: 1000 meters
26. 遥控距离： 0—200 米
Remote control distance: 0-200 meters
六、 系统配置 System Configuration
1. ATV 底盘 ATV Chassis
型 式：电驱动式
Type: Electric drive type
总质量：1600kg
Total mass: 1600kg
行走速度： 0-6km/h
Traveling speed: 0-6km/h
爬坡能力： 30%
Climbing ability: 30%
底盘离地：150mm
Chassis ground clearance: 150mm
2. 大功率发动机 High power engine
功率： 220HP
Power: 220HP
转速： 5500RPM
Speed: 5500RPM
3. 高扬程排涝泵 High head drainage pump
流量： 1000m3/h
Flow rate: 1000m3/h
扬程： 15-20m
Lift: 15-20m
型式： 混流式
Type: mixed flow type
材质：泵壳叶轮高强度铝合金
Material: Pump casing impeller high-strength aluminum alloy
数量： 2 台
Quantity: 2 units
出水口径： 300mm
Outlet diameter: 300mm
接口型式： DN300-3 型 3 齿接口
Interface type: DN300-3 type 3-tooth interface
4. 遥控及控制系统 Remote control and control system
品 牌： 进口
Brand: Imported
型 式： 无线+有线
Type: wireless+wired
遥控距离： 200m
Remote control distance: 200m
功 能： 控制 ATV 地面、水上行走、转向，发动机转速控制
Function: Control ATV ground, water travel, steering, engine speed control
5. 浮体 Floating body
材 质： 轻质防腐材料
Material: Lightweight anti-corrosion material
结 构： 异形结构
Structure: Abnormal structure
6. 水上行走系统 Water walking system
功 能： 可适应排涝需要水面移位
Function: adapt to water surface displacement for drainage needs
转 向： 左右差速转向
Steering: left and right differential steering
7. 配套工具器材 Supporting tools and equipment
序号
No
名称
Item
规格型号
Code
数量
QTY
备注
Remark
1
水带接口扳手
Water hose interface
wrench
DN300
2 把
2pcs
2
水带防护垫
Water hose protective
pad
0.5M*1M
4 块
4pcs
3
牵引绳
Traction rope
30M
2 根
2pcs
4
车轮止滑器
Wheel anti slip device
2 块
2pcs
5
脱困板 Escape board
1050*300
2 块
2pcs
6
水裤救生衣
Water pants life
jacket
大号
Big
2 套
2sets
Product Information

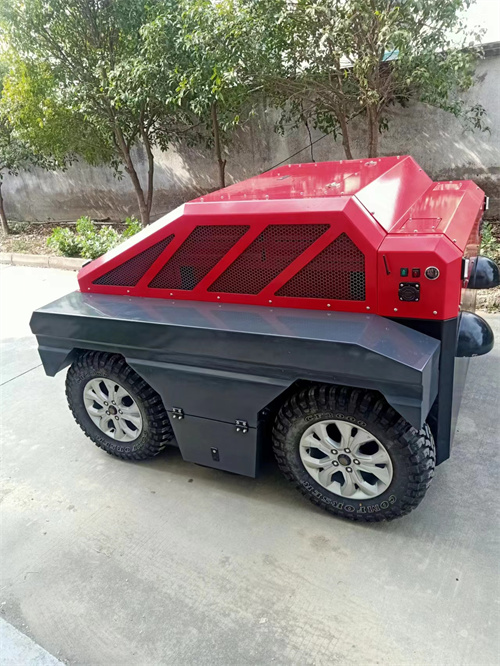

ZISHU-2000-ATV Flood Relief /Water Supply Robot is manufactured by ZISHU, which is a large-displacement Flood Relief /water supply pump unit equipped with an engine on an electric-driven amphibious ATV chassis. It is mainly developed for low-lying areas in the city, underground shopping arcades, basement carparks. It also applies for long distance water relay. ZISHU-2000-ATV Flood Relief /Water Supply Robot has the
advantages of small size, large water flow and high suction height. It also characterized with good drainage and strong adaptability.
Technical Specifications
• Motion type: wheeled four-wheel drive
• Drainage flow: 2000 cubic meters per hour
• Drainage head: 15-20 meters
• Engine power: 220 hp
• Walking speed: 0-6 km/h
• Weight: 1600 kg
• Dimensions: Length: 2700mm; Width: 2000mm; Height: 1500mm
• Maximum drain/water supply distance: 1000 meters
• Remote control distance: 0—200 meters
• Gradient Ability: 30。
• Remote control type: wireless + wired
* All pictures and specifications are for reference only.
* ZISHU is always ready to customize the above technical specifications for your choice.
